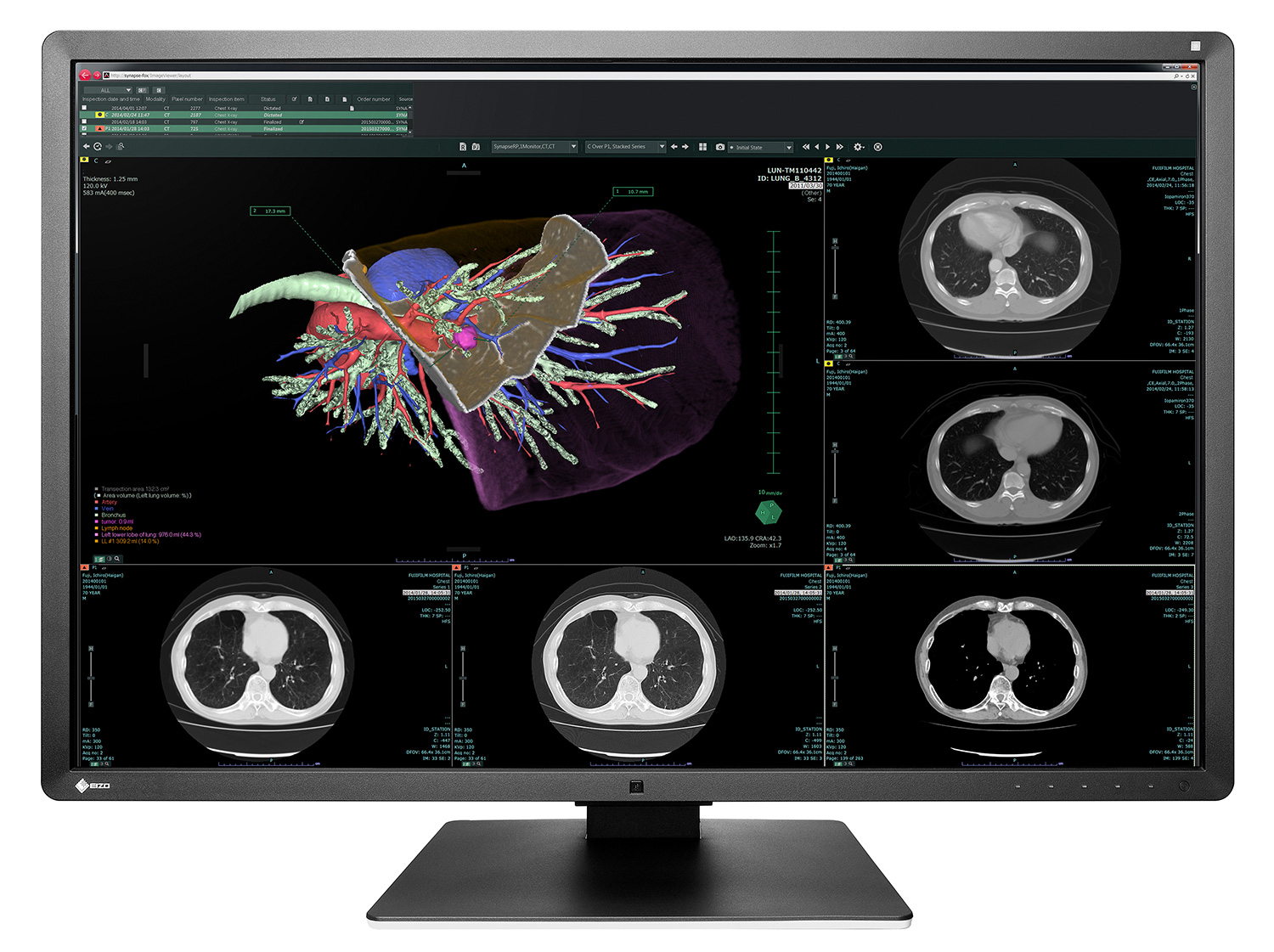

RadiForce RX660
6 Megapixel Monitor for Viewing a Variety of Medical Images Simultaneously
- Product No: NS-1092
- Manufacturer: Eizo
- Request Quote
Description
The RadiForce RX660 is a 6 Megapixel monitor that is ideal for viewing a variety of medical images simultaneously. This includes CR, DR, CT, MRI, and ultrasound. Presented in an all-new design and packed with EIZO technology, this monitor offers precise medical image viewing as well as ease of use. It is perfectly designed for diagnostic use.
With its 6 megapixels, the RadiForce RX660 provides plenty of space for multiple radiological images and is more convenient to use than a dual-screen solution with 3-megapixel monitors. Radiologists benefit from the size of the monitor, which enables them to arrange images as they choose.
Important: We recommend adding one of EIZO's Medical Graphics Cards, as this ensures accurate image display, vital for any medical application.
System Features
- 6MP
- 30"
- User-friendly design
- Work-and-Flow function
Technical Specifications
| Model Variations | RX660-BK: Anti-Glare coating, with stand, black RX660-ARBK: Anti-Reflection coating, with stand, black |
|---|---|
| Panel: | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 76 cm / 30.0" |
| Native Resolution | 3280 x 2048 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 645.5 x 403.0 mm |
| Pixel Pitch | 0.1968 x 0.1968 mm |
| Display Colors | 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors 8-bit: 16.77 million from a palette of 543 billion (13-bit) colors |
| Viewing Angles (H / V, typical) | 176° / 176° |
| Brightness (typical) | 1000 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 25 ms (black-white-black) |
| Video Signals: | |
| Input Terminals | DisplayPort x 2, DVI-D (dual link) |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 127 kHz / 22 - 61 Hz |
| USB: | |
| Upstream | USB 2.0: Type-B x 2 |
| Downstream | USB 2.0: Type-A x 3 |
| Power: | |
| Power Requirements | AC 100 - 240 V: 50 / 60 Hz |
| Typical Power Consumption | 93 W |
| Maximum Power Consumption | 190 W |
| Power Save Mode | 1.6 W or less |
| Sensor | Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor |
| Features & Functions: | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow | Hide-and-Seek, Switch-and-Go, Point-and-Focus |
| Preset Modes | CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications: | |
| Net Weight | 14.2 kg |
| Net Weight (Without Stand) | 10.1 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC |
| FDA | 510(k) Clearance for General Radiography |
| Dedicated Software: | |
| Monitor Quality Control Software RadiCS | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.): | |
| Signal Cables | Dual Link DVI-D (3 m), DisplayPort (3 m) x 2, DisplayPort (0.28 m) |
| Others | AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, cable cover, Utility Disk (RadiCS LE, PDF installation manual), instructions for use |
| Warranty | Five Years |
